제품 설명
- 2개의 측정 채널(1/2): ±500/±500 Pa
- ± 13파스칼
- 모드버스
- IP65
Product description
- 2 measuring channels (1st/2nd): ±500/±500 Pa
- ± 13 Pa
- Modbus
- IP65

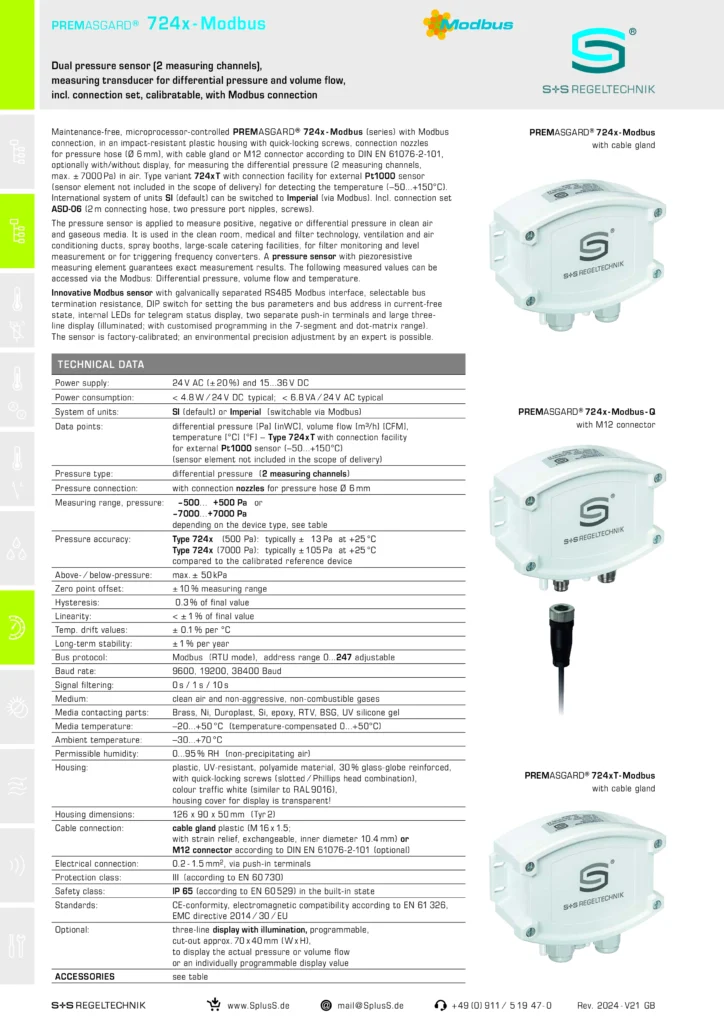

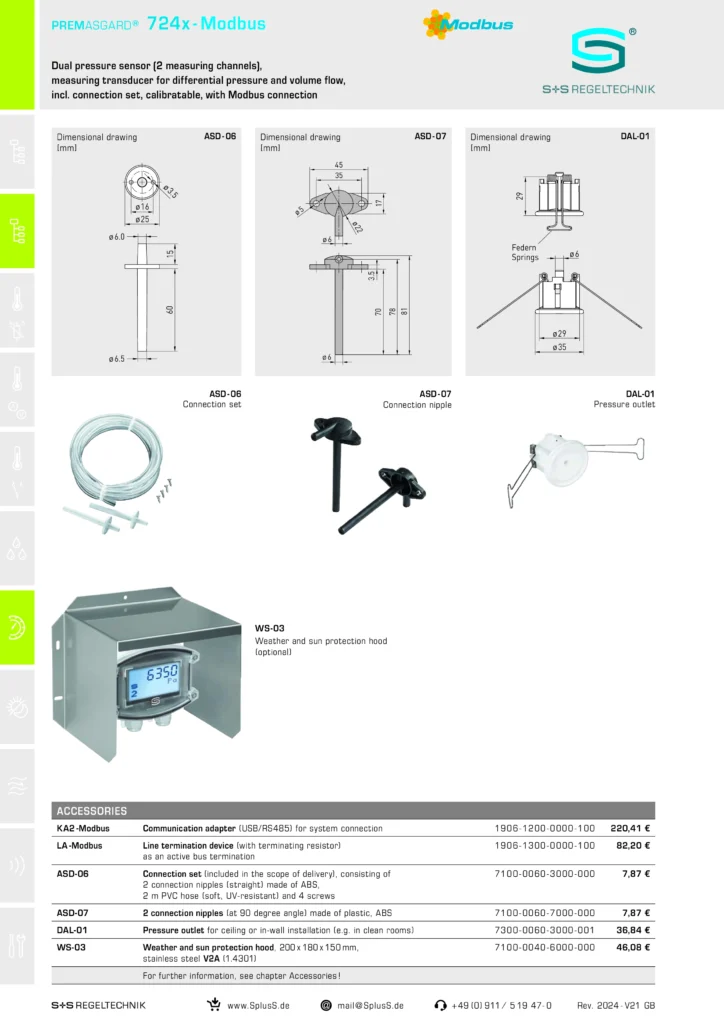

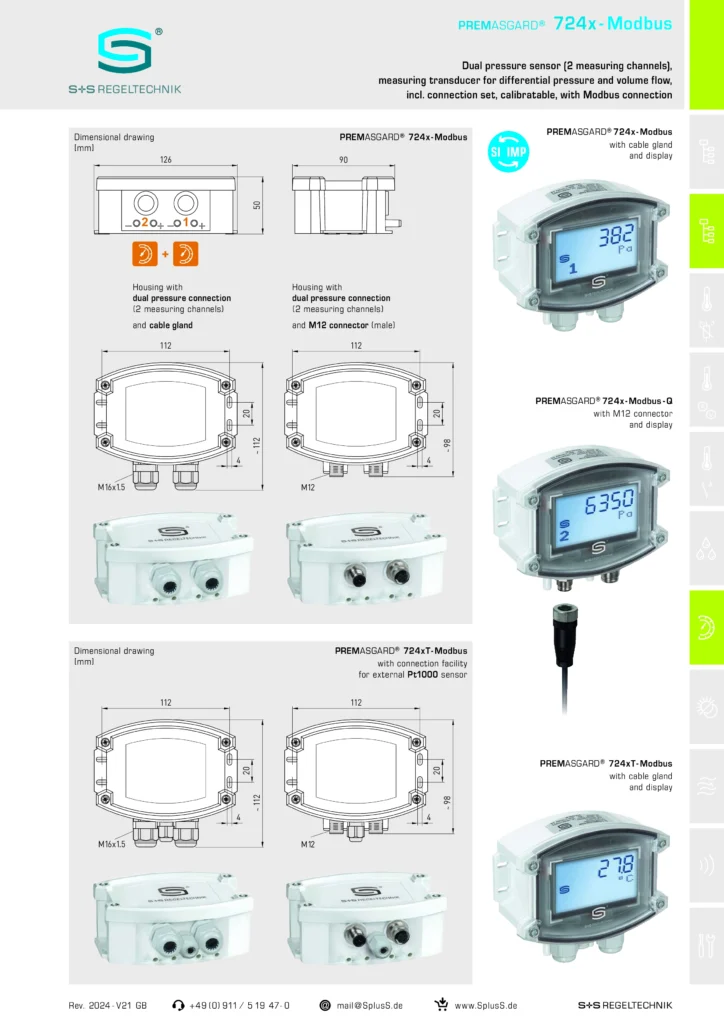

Maintenance-free microprocessor-controlled PREMASGARD® 724x – Modbus (series) with Modbus connection, in impact-resistant plastic housing with quick-locking screws, connection piece for pressure hose (Ø 6 mm), with cable gland or M12 plug connector to DIN EN 61076-2-101, optionally with ⁄ without display, for measuring the differential pressure (2 measuring channels, max. ± 7000 Pa) in air. Type variant 724xT with connection option for external Pt1000-sensor (sensor element not included in the scope of delivery) for recording the temperature (-50…+150°C). International unit system SI (default) is set to Imperial (via Modbus). Incl. connection set ASD-06 (2 m connection hose, two pressure connection nipples, screws).

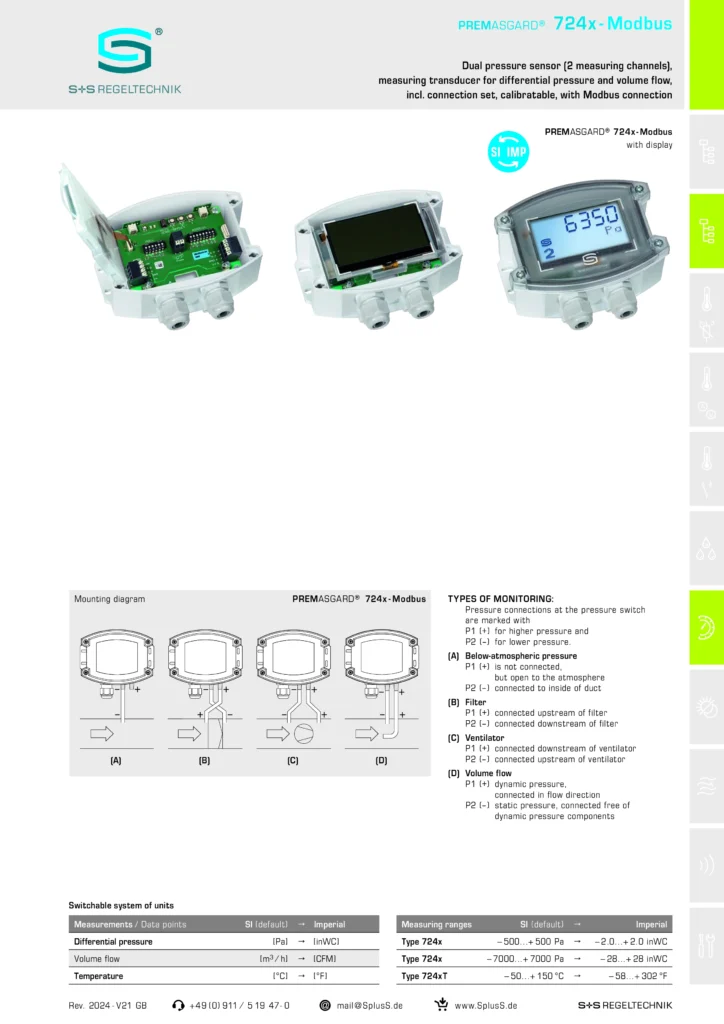

The pressure sensor is used to measure positive, negative or differential pressures in clean air and gaseous media. It is used in clean room, medical and filter technology, in ventilation and air conditioning ducts, in spray booths, in commercial kitchens, for filter monitoring and level measurement or for controlling frequency converters. A pressure sensor with piezoresistive measuring element guarantees exact measurement results. The following parameters can be called up via Modbus: Differential pressure, volume flow and temperature.

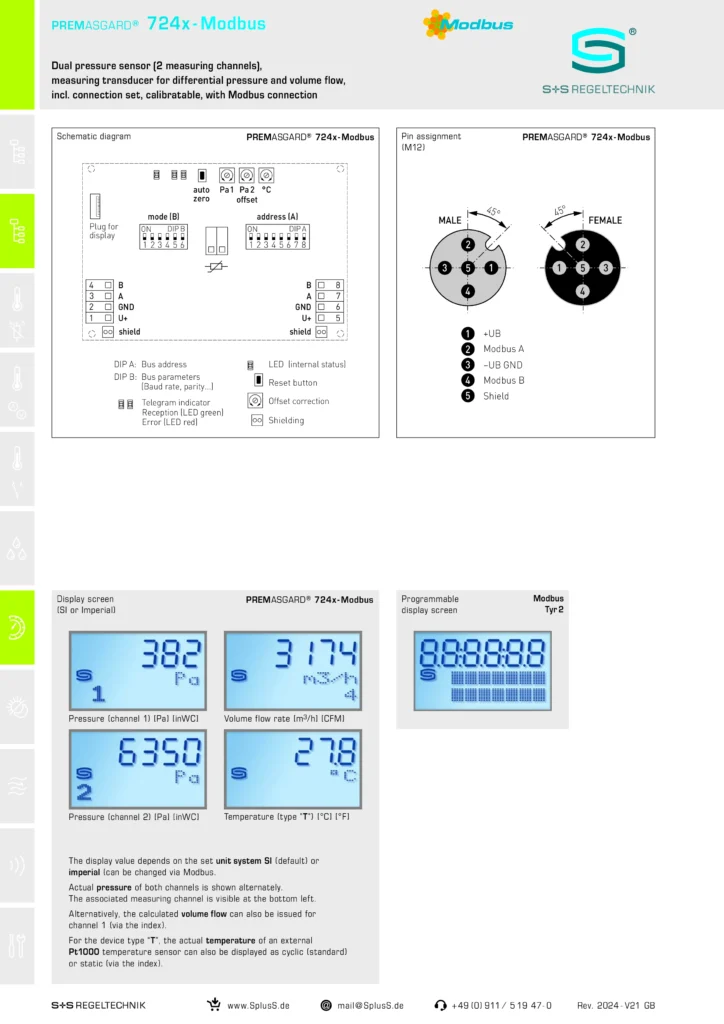

Innovative Modbus sensor with galvanically isolated RS485 Modbus interface, switchable bus terminating resistor, DIP switch for setting the bus parameters and bus address in de-energized state, internal LEDs for telegram status display, two separate push-in terminals and large three-line display (illuminated, individually programmable in the 7-segment range and dot-matrix range). The sensor is calibrated at the factory; fine adjustment by a specialist is possible depending on the environment.
