제품 설명
- 0…500 lux / 1 / 2 / 5 / 20 / 60klux
- 일반적으로 EW의 5% 미만
- 4..20mA OR 0-10Vdc
- IP65, IP67
다기능 측정 변환기는 확대되고 보편적인 적용 범위로 다양한 유형과 재고를 최소화합니다. 사용된 센서는 눈의 민감도에 맞게 특별히 조정되었습니다. 가장 큰 감도는 350nm에서 820nm 범위입니다. 특수 필터가 있는 이 센서는 높은 색온도(햇빛과 유사)를 가진 일광 및/또는 인공 조명의 조도를 측정하는 데 사용하기에 적합합니다.
Product description
- 0…500 lux / 1 / 2 / 5 / 20 / 60 kLux
- typical < 5 % of the EW
- 4..20mA OR 0-10Vdc
- IP65, IP67

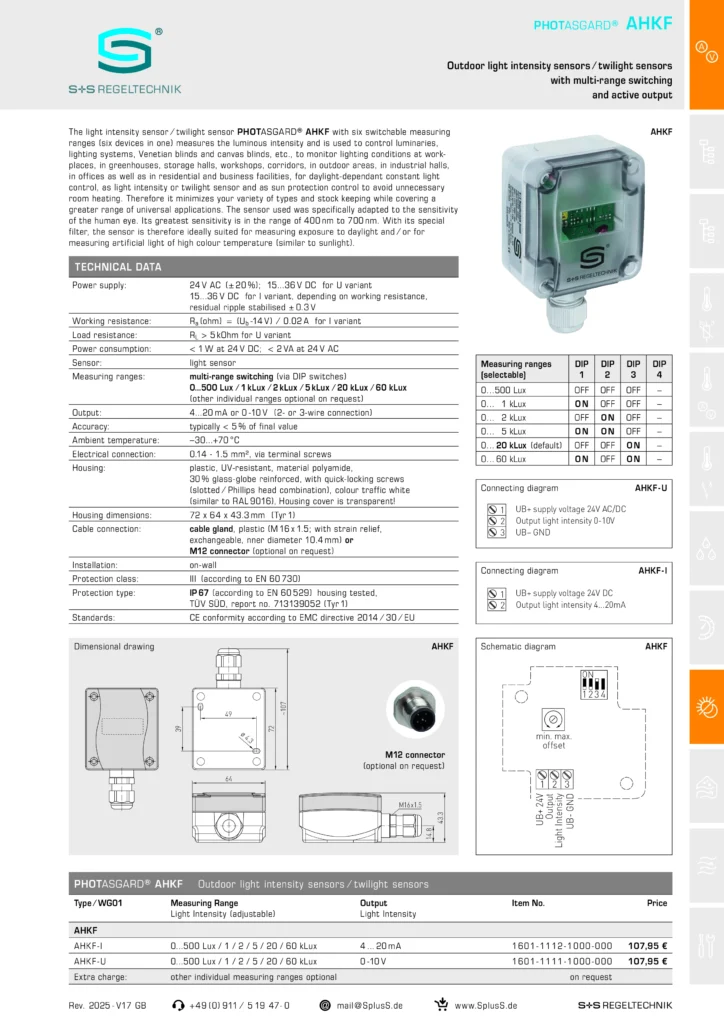

The brightness sensor/twilight sensor PHOTASGARD® AHKF, with six switchable measuring ranges (six devices in one), measures illuminance and is used to control luminaires, lighting systems, blinds and awnings as well as to monitor lighting conditions at workstations, in greenhouses, warehouses, workplaces, corridors, outdoors, in industrial halls and offices, residential and commercial premises, in daylight-dependent constant light control systems, as a brightness or twilight sensor and for sunshade control to prevent unnecessary room heating.
The multifunctional measuring transducer minimizes your variety of types and stock keeping with an enlarged, universal range of applications. The sensor used has been specially adapted to eye sensitivity. Its greatest sensitivity is in the range from 350 nm to 820 nm. With its special filter, the sensor is therefore predestined for use in measuring the illuminance of daylight and/or artificial light with a high color temperature (similar to sunlight).
