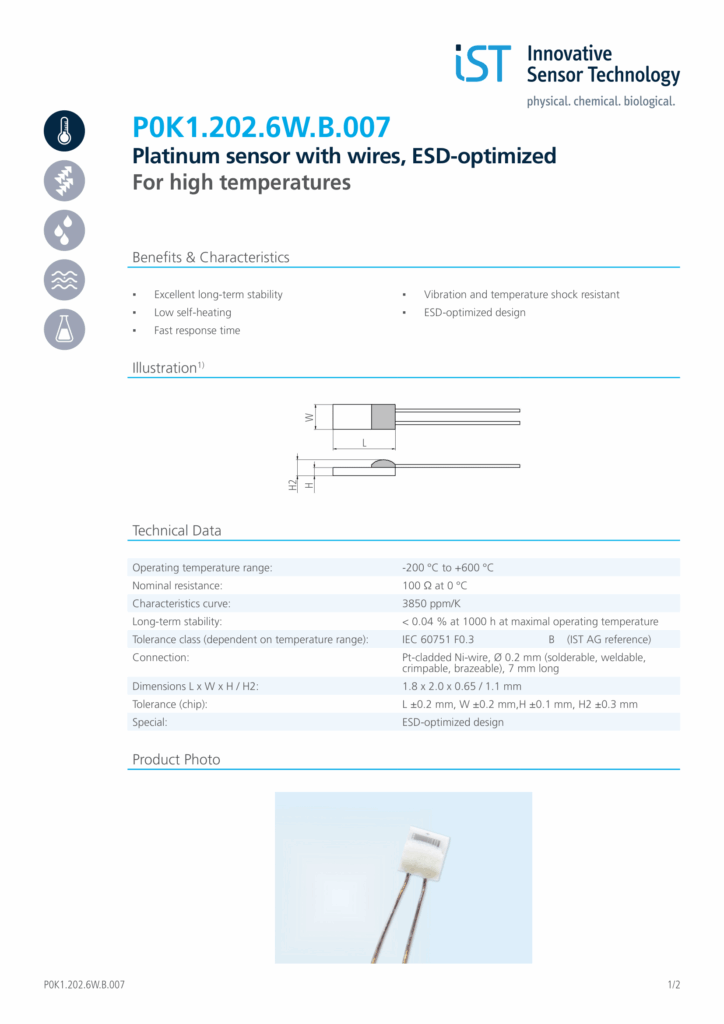

Thin-film platinum, ESD-optimized, 100 Ohm RTD component, -200 °C to +600 °C
Temperature sensor Pt100 with ESD optimized resistor design
Product Name
P0K1.202.6W.B.007
Nominal resistance
100 Ω at 0 °C
Operating temperature range
-200 °C to +600 °C
TCR
Pt 3850 ppm/K
Chip size/dimensions
2.0 x 2.0 x 1.3 mm
Tolerance/class
IEC 60751 F0.15 (IST AG reference class A)
Connection type
Pt/Ni-wire, Ø 0.2 mm
Wire length
7 mm
Special
ESD optimized design (IEC/EN 61000-4-2)
Packaging
Blister

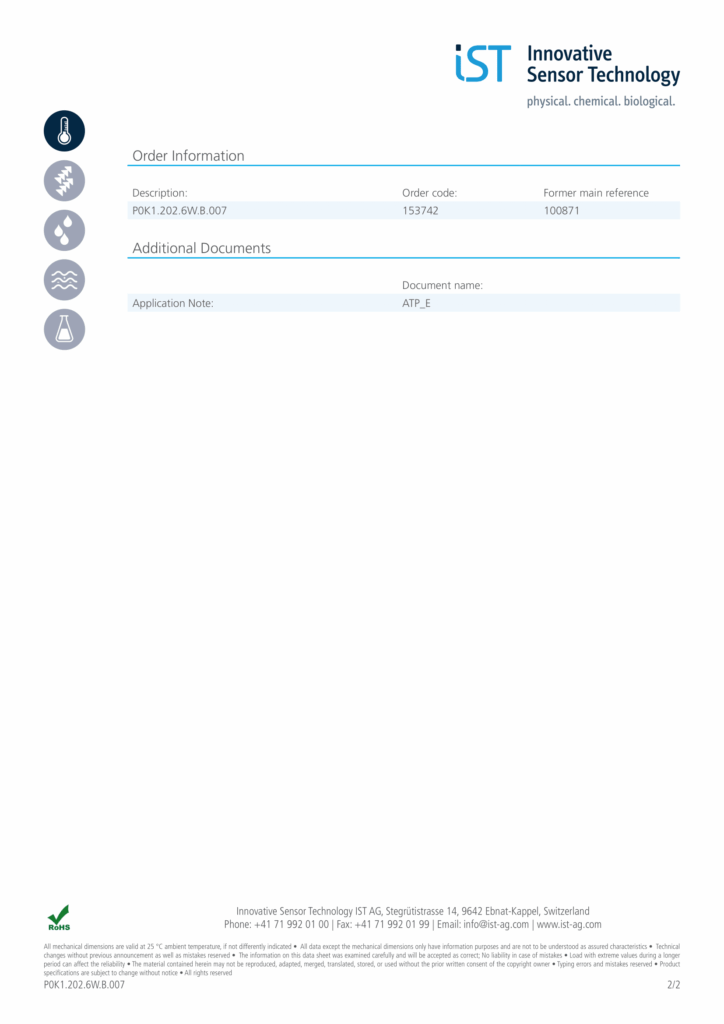

replaces former 100871
153742
